Photo Beam Unit
- PBU-2000

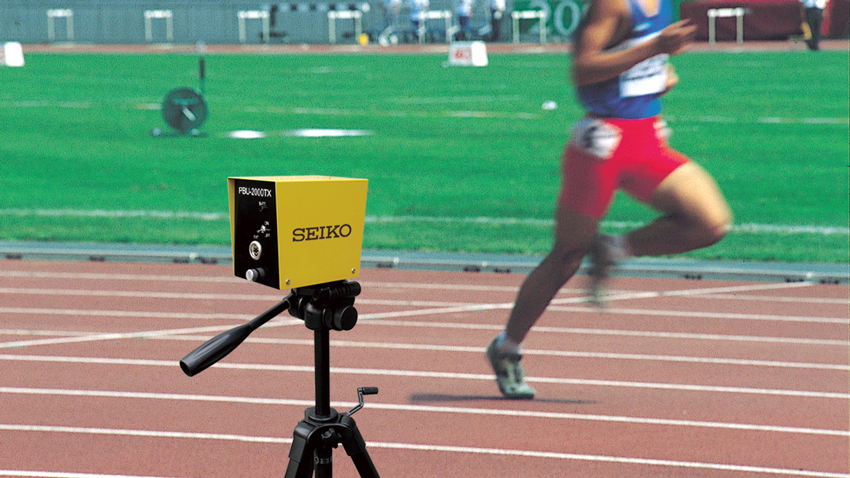

■The Photo Beam Unit measures finish time and split time for track event.
■The Photo Beam Unit consists of transmitter and receiver.
■When a runner passes between them, the receiver detects the interception of the beam and instantaneously outputs an electric signal for measurement and display of the time.
■The longest distance between transmitter and receiver is 100m.
■By using with a Sports Printer (CT-2000), the runner’s speed can be measured.
System Components
Transmitter(PBU-2000TX)
1unit
Receiver(PBU-2000RX)
1unit
Signal cable
1unit
Battery*
8peices
*Battery should be prepared by user
Option
Tripod
2units
Storage trunk (PBU-2000TR)
1unit
Related products
Power supply
LR6 alkaline battery or Ni-MH battery, 4 pieces
or External battery (DC12V)
Continuous running time
Transmitter: 72 hours / Receiver: 24 hours (+25℃)
Light-emitting distance
670mm (visible light・IR)
Effective distance
Max. 100m
Output signal (for receiver only)
Make contact (rated value 30V, 500mA)
Monitor
LED lighting up upon incidence of light(on the rear of the receiver)
Operational temperature range
-20℃~+50℃ (without dew condensation)
*+5℃~45℃ (when alkaline battery is used)
Overall dimensions
W97 x H130 x D152 mm (excluding tripod)
Weight
Approx. 1.5kg (excluding battery)
Enclosure and finish
Steel, yellow paint
