- CT-2000Ⅱ
The SEIKO Sports Printer CT-2000Ⅱ is a multi-purpose printer/timer that can be used for various sports events requiring timing such as track and road running races, swimming, ski and skate.
■ Being equipped with various measurement modes, CT-2000Ⅱ can be used for timing of all types of sports events.
[Counting Mode] [Paralle lCountingMode] [Parallel Lap/Split Time Measurement Mode]
[Parallel Delayed Start Mode] [Time Correction Mode ] [Auto Measurement-1 Mode]
[Auto Measurement-2 Mode] [Speed Measurement Mode]
■ Timing down to 1/1,000 of a second is possible.
The method of calculating the fraction of a second can be selected from 10 types including rounding up, rounding down and rounding off, thus making it possible to comply
with various timing rules adopted in different sports events.
■ By using resin case, high durability has been achieved.
■ If the dry batteries are installed when CT-2000Ⅱ is powered by AC adapter, the power source can be quickly switched over to the batteries in case of failure of AC power supply, to ensure constant operation. ※
■ Two sets of dry batteries (6 AA size cells per set) can be installed in the main body, and the power source is switched over automatically between them. By replacing the unused set of dry batteries with new ones, CT-2000Ⅱ can be powered by the dry batteries continuously for a longtime. ※
■ Rechargeable batteries can be used in place of alkaline dry batteries. ※
■ CT-2000Ⅱ can also be powered by external battery. (DC11V～DC14V)※
※Dry batteries, rechargeable batteries and external battery are not included with CT-2000Ⅱ, and they should be purchased separately if required.
Main Functions
■ The Auto Measurement Mode enables the measurement during individual practices performed alone. ※
○ Reaction time (start reaction time: time after the start signal until swimmer's feet have left the starting block), lap time, and split time can be measured during swimming practices. ※
○ Lap time and split time can be measured during practices of speed skating, track, and other races.
※
○ By outputting a signal to an external buzzer device, CT-2000Ⅱ can control the device to generate a starting sound automatically. ※
■ Even if the actual start time has differed from the scheduled time, the Time Correction Mode (inputting time difference from start time) corrects the scheduled start time set in advance in the secondary CT-2000Ⅱ units, enabling them to synchronize with the master CT-2000Ⅱ unit. ※
■ The Speed Measurement Mode measures the average speed over a given section of the entire distance. ※
■ As CT-2000Ⅱ is compatible with CT-1000, the grip switches, extension unit, synchronization cables, and cables to connect with scoreboard used previously with CT-1000 can also be used with CT-2000Ⅱ.(with the exception of a cable used to connect with a personal computer).
※Optional device is required.
New model with significantly upgraded functions CT-2000Ⅱ
1.Counting Mode Counting Mode
❍ Order of arrival is printed out from 0001 to 9999, but the
measurement can be continued after the arrival of the
9,999th racer with the order of arrival being counted
from 0000 (9999 → 0000 → 0001 → 0002).
❍ Order of arrival and split time are printed out each time a
measurement is made from the start to the finish.
❍ Running time (time elapsed from the start) and split
time measured can be displayed on the scoreboard
(ST-306, etc.).
2.Parallel Counting Mode rallel Counting Mode
❍ Split time can be measured lane by lane (or racer by racer).
❍ Lane No. (CH No.), number of laps, and split time are
printed out.
❍ Running time (time elapsed from the start) and split
time measured can be displayed on the scoreboard
(ST-306, etc.).
3.Parallel Lap/Split Time Measurement Mode
❍ Lap times and split times can be measured lane by lane
(or racer by racer).
❍ Lane No. (CH No.), number of laps, lap time and split
time are printed out.
❍ Running time (time elapsed from the start) and lap or
split time measured can be displayed on the scoreboard
(ST-306, etc.).
4.Parallel Delayed Start Mode rallel Delayed Start Mode
❍ Time measurement of each racer can be made in a race
where not all the racers start at the same time but they
start at different times at certain intervals.
❍ Different time measurements can be made according to
the start times.
❍ Group No, finish time (current time at the finish line),
order of arrival and split time are printed out as
classified by the start time.
❍ Running time (time elapsed from the start) and split
time measured can be displayed on the scoreboard
(ST-306, etc.).
5.Time Correction Mode Time Correction Mode (Starting Time Difference Input )
❍ This measurement mode is designed to measure the
times at intermediate points on the course in such
sports events as marathon and Nordic ski races.
❍ The CT-2000Ⅱ placed at the start point (Master) and the
other units of CT-2000Ⅱ placed at some intermediate
measurement points (Secondary) can be synchronized.
❍ Scheduled start time can be set in advance.
❍ It is possible to input the time difference between the
scheduled and actual start times into the Secondary
units of CT-2000Ⅱ.
❍ Order of arrival and split time can be printed out.
❍ Running time (time elapsed from the start) and split
time measured can be displayed on the scoreboard
(ST-306, etc.).

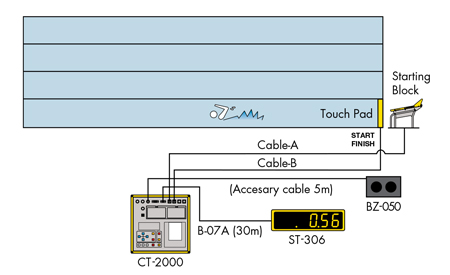

6.Auto Measurement-1 Mode(Swimming Training)
❍ Reaction time (time after the start sound until swimmer’s
feet have left the starting block), lap time, split time are
measured and printed out.
❍ Reaction time, and lap or split can be displayed on the
scoreboard (ST-306, etc.).

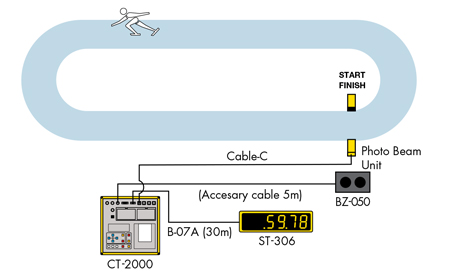

7.Parallel Lap/Split Time Measurement Mode(Circling Training )
❍ Lap time and split time are measured and printed out lap
by lap.
❍ Lap or split time can be displayed on the scoreboard
(ST-306, etc.).
* In “Auto Measurement” modes, the time of only one athlete can be measured.
It is not possible to measure the times of more than one athlete at a time.
8.Speed Measurement Mode
❍ The average speed in a given section of the entire
distance is measured.
❍ The distance of the measurement section can be set
from 1m to 100m in 10-cm increments.
❍ The measurement unit of speed can be selected from
km/h, m/s and mph (miles per hour).
❍ The speed measured is printed out.
❍ Speed measurement can be made within the range of
1〜1,000km/h, 1〜250m/s, or 1〜600mph.
❍ The speed measured can be displayed on the
scoreboard (ST-306, etc.).
Option
■ Expansion Unit EX-2000
An input channel can be expanded to the maximum 10 channels.
■ Grip Switch GS-51/52/53
○ GS-51（with 2.5m cable）
○ GS-52（with 5.5m cable）
○ GS-53（with 10m cable）
■ Synchronization Cable／SY-456
■ Ribbon Cassette／ERC-22
■ Roll Paper／ RP-03
System Components
CT-2000Ⅱ main body
1 unit
Grip switch (with 2.5 m cable)
2 units
AC adapter (with 5 m cable)
1 unit
Roll paper
1 roll
Ribbon cassette
1 unit
Time accuracy
Accuracy of crystal oscillator: ± 1 ppm (at a temperature of 25℃)
Maximum
measurement
duration
23 hours, 59 minutes, 59 seconds 999; Start time can also be set in hour,minutes and seconds up to the maximum duration.
Measurement unit
(10 types of calculation methods are available.)
Method of calculation
1/1000 sec. digit is retained
1/1000 sec. digit is rounded down
1/1000 sec. digit is rounded up
1/1000 sec. digit is rounded off
1/100 sec. digit is rounded down
1/100 sec. digit is rounded up
1/100 sec. digit is rounded off
1/10 sec. digit is rounded down
1/10 sec. digit is rounded up
1/10 sec. digit is rounded off
Data and printout
1/1000 sec. increments
1/100 sec. increments
1/100 sec. increments
1/100 sec. increments
1/10 sec. increments
1/10 sec. increments
1/10 sec. increments
1 sec. increments
1 sec. increments
1 sec. increments
Number of input channels
From panel：3 channels
From connectors：2 channels (up to 10 channels when extension unit is used)
Number of data storable
Up to 3,000 data contained in up to 100 blocks
Speed measurement
Distance of section: 1～100 m in 0.1 m increments
Measurement unit: km/h, mph and m/s
Measurement range: 1～1000 km/h, 1～600 mph, 1～250 m/s
Number of input channels: Up to 10 channels when extension unit is used
Monitor display
Display device：LCD
Number of characters：20 characters x 4 lines
Character height：9.2 mm
Printer section
Printer type ：Dot impact printer (5×7 dot matrix, 24 characters/line)
Printing speed ：2.5 lines/ sec.
Roll paper：57.5 ± 0.5 mm (width) × 70 mm (outer diameter) or a smaller size; Plain paper type
Power supply
1. AC 100 V～AC 240 V (used with AC adapter)
2. Built-in battery (2 sets of 6 AA size dry cells) * Rechargeable type batteries can also be used.
3. External battery (DC12V) *Do not use AC power supply at the same time.
Battery life
Alkaline dry batter: Approximately 8 hours (at +25℃)
Nickel-metal hydride rechargeable battery: Approximately 14 hours (at +25℃)
* The above battery lives may be shorter if measurement/printing is performed more than once in 10 seconds.
Temperature range
During operation : -5℃～+40℃ (non-condensing)
* 0℃～+40℃ for AC adapter
During storage : -15℃～+55℃ (non-condensing)
External appearance
Outer dimensions
W476×H406.8×D135㎜
Material
Case：FRP, Aluminum sash
Panel：Resin
Weight
Approximately 7.2kg (excluding batteries)
