Optical Distance Measuring Equipment
- DM-400

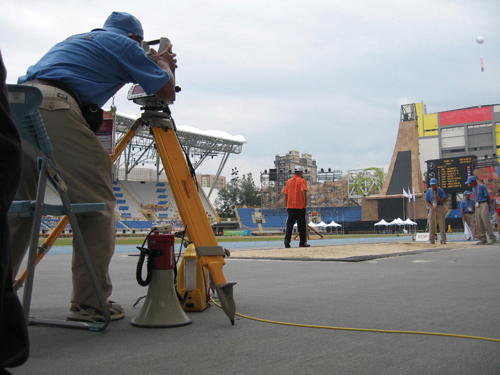

Measures the Distance in Field Events Accurately and Quickly Using Infrared Beam
■ Applicable to 8 events
Applicable to javelin throw, hammer throw, discus throw, shot put, long jump, triple jump, high jump and pole vault.
■ Online data transmission
Measured data can be fed online to the display board and computer, except in high jump and pole vault.
■ Easy interactive operation
Measurement can be made easily in an interactive way using an LCD monitor and button switches.
■ Memory of measured distance
Once measured, the baseline distance is retained in memory unless it is deleted or the power is turned off.
■ Out-of-the-level alarm
The alarm sounds if the distance finder is out of the level beyond the specified limit. The voltage level of the backup battery can be checked on the monitor.
-
-
Prism
Measuring range
2 ～300 m
Maximum measurement accuracy
±5 mm
Effective distance
In accordance with RS-232C or RS-422
(when external battery and signal converter are used)
Output data SEIKO format
Event name (in abbreviated code) and measured value (in 1 cm increments)
Operational temperature range
－10℃～＋50℃
Enclosure
Outdoor-use drip-proof type
Battery backup
Approx. 10 hours when internal and external batteries are used in combination; at 25℃
Approx. 1 hour when only internal battery is used.
Output data
SEIKO format
Main body :W190×H380×D215mm / Tripod :H900～1,600mm
Weight
Main body :Approx.8.0kg / Tripod :Approx.6.3kg

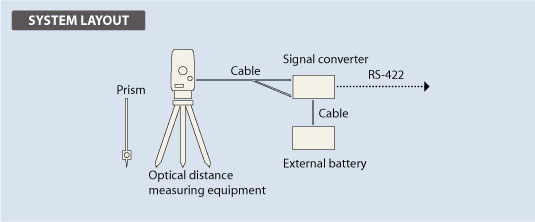

System configurations
Optical distance measuring equipment
1unit
Tripod
1unit
Signal converter
1unit
Cable
1set
Internal battery
1unit
External battery
1unit
Prism
1piece
Accessories
1set
Carrying case
1unit
