Track
Wind Velocity Display Board
- WD-200
- WD-100
Displays the Measured Wind Velocity Quickly and Clearly

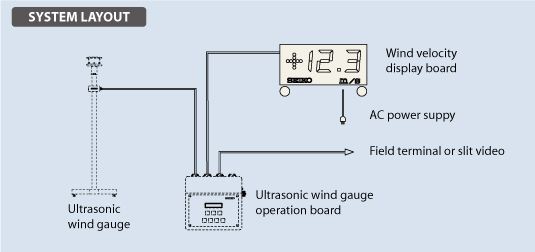

Displays the wind velocity measured by the ultrasonic wind gauge.
The display range is +0.1 to +19.9 m/s for the tail winds and -0.1 to -19.9 m/s for the head winds in 0.1 m/s increments.
WD-200 (Double-Faced Type) / WD-100 (Single-Faced Type)
Display
Electromagnetic 7-segment type (yellow)
3 digits (only "1" is displayed for tens digit)
Character height ... 305 mm
Power supply
AC100～240V
Enclosure
Outdoor-use drip-proof type
Operational temperature range
0℃～+50℃
Overall dimensions
W1,200×H770×D500mm
Weight
Approx. 60 kg
