Ultrasonic Wind Gauge
- WG-300
Measures Both Tail and Head Winds Instantly
■ Selectable measurement duration
Measurement duration can be selected from 5, 10 and 13 seconds according to the type of events.
■ Real-time display of measurements
The result of measurement can be displayed instantly on the wind velocity display board (option).
■ Powered by battery
Relocation of the display board can be made easily.
-

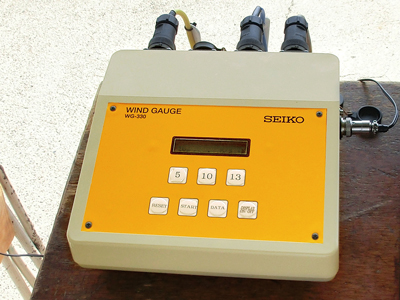

Ultrasonic wind gauge operation board -

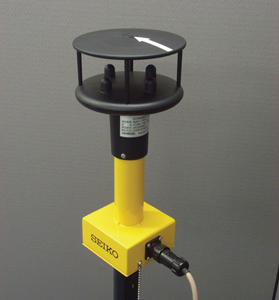

Sensor
Measuring range
-19.99～ +19.99 m/s
Accuracy
Within±10％ (at a wind velocity of 2 m/s)
Measurement unit
0.01 m/s
Measurement duration
Selectable from 5, 10 and 13 sec
Measurement direction
Both head and tail winds
External output
In accordance with RS-422
Power supply
DC 12 V LR06 "AA"alkaline dry cell x 8 pcs
Operational temperature range
-10℃ ～+ 50℃
Weight
Approx. 1.6 kg (Sensor) / Approx. 6.0 kg (stand)
Approx. 1.2 kg (Operation board)

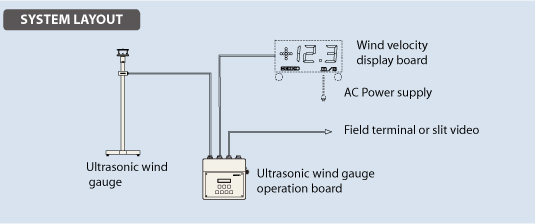

System configurations
Sensor
1unit
Stand
1unit
Ultrasonic wind gauge operation board
1unit
Connection cable
1piece
Carrying case
1set
