Field
Field Display Board
- FD-500
■ Result display
The number of trials, bib No., fair/foul judgment, distance and other results can be displayed by using the operation panel on the side face of the display board or by linking it
to a computer system. It can rotate 90° both ways.
■ Test pattern display
To check the function of the display, test pattern can be displayed.
Display
Electromagnetic 7-segment type (yellow)
Character height ... Approx. 305 mm
5 characters x 2 rows (yellow/black, red/ black)
Display data
Number of trials ... 1 digit (Red)
Bib No. ... 4 digits (Yellow)
Distance / height ... 4 digits (Yellow)
Fair / foul judgment ... ○ or × (Red)
Rotation angle
90° both ways
Rotation speed
Approx. 15 seconds for a both-way rotation
External input
In accordance with RS-422
Power supply
AC 100～ 240 V
Operational temperature range
－10℃～＋50℃
Overall dimensions
W1,730 x H1,650 x D900 mm
Weight
Approx. 500 kg

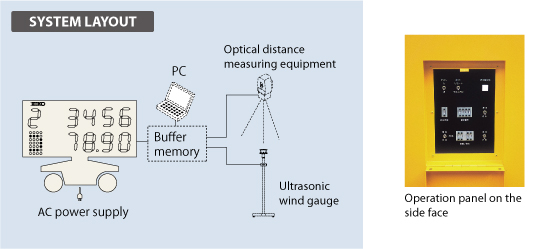

System configuration
Field display board
1unit
Power cable（30m）
1unit
Signal cable（30m）
1piece
Vinyl cover
1set
