Track

Running Timer Display Board

  • RT-100

Clear and Easy-to-Read Electromagnetic 7-Segment Type

トラック競技

■ Two measurement display modes
Minutes display mode : Measures up to 59 min. 59 sec. 99 to an accuracy of 1/100 sec.
(if the measuring unit is set at 1/100) Hours display mode : Measures up to 23 h. 59 min. 59 sec.

■ Double-sided display
Automatic changeover between minutes and hours display modes is possible. The current time can also be displayed.

■ Display of a wide range of data
Running time, lap time, preset start time, countdown of a preset period of time, and current time can be displayed.

■ Automatic lap time display function
Upon reception of a lap signal, the lap time remains displayed for 5 sec., and then, the display returns to the running time.

Display

Electro magnetic 7-segment type / 6 digits (yellow)
Character height ... 305 mm

Power supply

AC 100~240 V

Weight

Approx. 75 kg

Enclosure

Outdoor-use drip-proof type

Operational
temperature range

0℃~ + 50℃

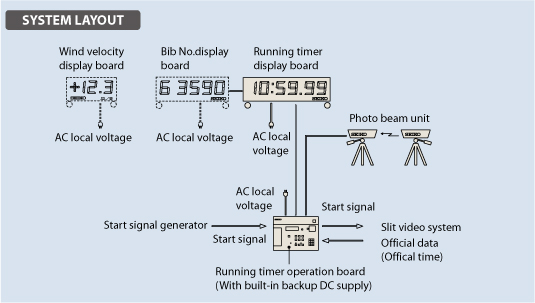

System configurations

Running timer display board

1unit

Running timer operation board

1unit

Photo beam unit

1set

Cable

1set

R6(size AA)dry battey

8pieces

Options

Bib No.display board

1unit
