Slit Video System
Slit Video System
- 2200HD Pro. / 5000HD Pro. / 10000HD Pro.
Developed with SEIKO's State-of-the Art Technology

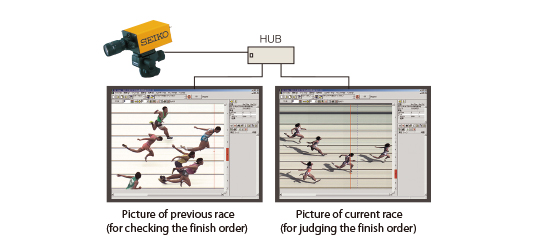

1. PC Network to Share Picture Data (Option)

A computer network can be formed as an option by hooking up two or more computers to the Slit video system to share the picture data among them.
As a result, it is possible to check the finish order of the previous race and judge that of the current one at the same time.
In another use of the network, using one computer exclusively for capturing races and the other for judging finish order will reduce the burden of the photo finish judge.

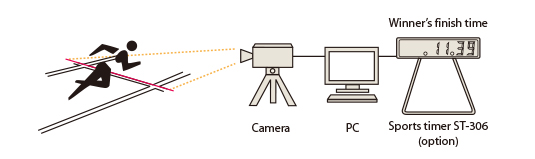

2. Photo Beam Function

The Slit video system can serve the function of a photo beam unit. By using the System with a sports timer ST-306 (available as an option), the winner's finish time can be output and displayed as soon as the runner has crossed the finish line.
3. Capturing During Judgement Work
Before the finish order judgment of the current race is completed, a new race can be started and capturing can be made.

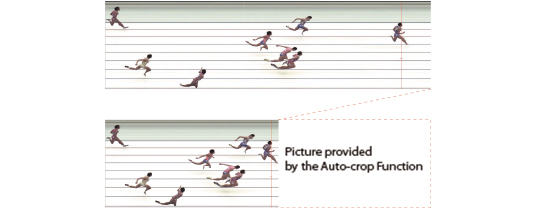

4. Auto-Crop Function

The blank space among the runners, which is irrelevant to the finish order judgment, is cut off automatically.
This function will facilitate the judgment process as well as slim down the size of the data to be stored in the hard disk.
5. Manual Deletion Function
A part of the picture taken can be deleted selectively. In long distance track races, for example, deleting runners one or more laps behind those finishing the race can prevent confusion in judging the finish order.
6. Failsafe against Accidental Timer Reset
Even if the timer is reset accidentally during an event,normal timekeeping can be resumed using the measurements preserved in memory.

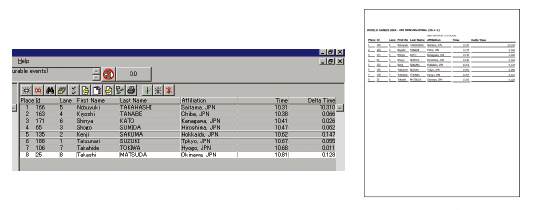

7. Name Display Only by Inputting Bib No.

During the finish order judgment work, the name of the runner is displayed on the monitor screen only by inputting the pre-registered bib No. Resulted finish order on the screen can also be printed out.
8. Automatic Capturing
The camera monitors the finish line all the time, automatically recognizing and capturing the runners who crossed it. This function can eliminate mistakes in operation. Manual capturing using a grip switch is also possible.
9. Remote Control of Camera's Iris

When the camera's iris needs to be adjusted urgently, in case of sudden change in the weather, for example, it can be remote controlled by the capturing PC.
10. Easy Event Registration

Once the lists of event names are prepared, the registration of those names for a particular meet can be made easily by clicking them on the display. Addition of new event names can be made easily through the keyboard.

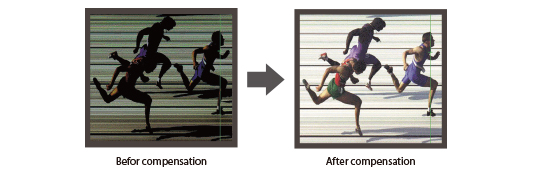

11. Gamma Compensation Function

Gamma compensation can be carried out easily after photographing. Pictures taken in bad weather, against the sun or in an ill-lit stadium can be reproduced into distinct ones on the monitor display to facilitate the judgment process.
The mechanism of the slit video system

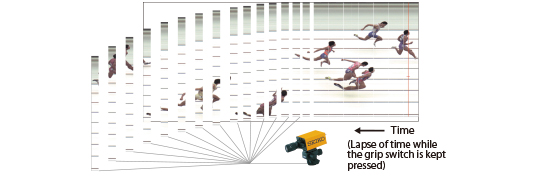

・Pictures taken by the Slit video system

The Slit Video system takes a digital video through a slit installed in line with the finish line at a rate of 2,000 pictures per second (when the scanning speed is set at 0.5 msec/line).
Each picture obtained covers an ultrathin vertical line which is approximately 1cm in width and 15m in length.

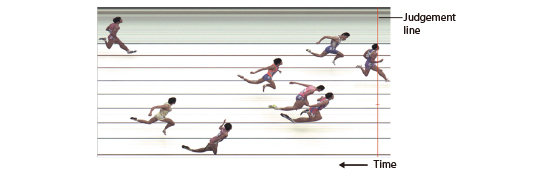

・Picture shown on the monitor screen of PC

The pictures are patched together in order of the time when they were taken, and then the picture at right will be shown on the PC screen.
In the finish order judgment procedure, the finish time and order will be displayed only by aligning the judgment line with the runner's torso and pressing the enter key.
Camera
Scannig Speed
【2200HD Pro.】1/2,000 sec.
【5000HD Pro.】1/5,000 sec.
【10000HD Pro.】1/10,000 sec.
Image pickup system
Vertical scanning by CCD line sensor
Lens
Nikon F-mount lens
Power supply
AC100V~240V ±10% 50/60Hz
Power consumption
300W(Max.)
Judgment/capturing PC
CPU
【2200HD Pro.】1.60GHz or more
【5000HD Pro./10000HD Pro.】3.0GHz or more
HDD
【2200HD Pro.】80GB 5,400rpm or more
【5000HD Pro./10000HD Pro.】160GB 5,400rpm or more
Removable disk device
【2200HD Pro.】CD-RW
【5000HD Pro./10000HD Pro.】DVD-RW
Monitor output
1,024×768 pixels, 64,000 colors or more
Image memory
【2200HD Pro.】20,000 screens
【5000HD Pro】8,000 screens
【10000HD Pro.】4,000 screens
Continuous scanning
666 minites.
(at scanning speed 1/1,000 sec.)
in case of HDD 80GB or more
I/O port
Serial port, USB2.0-compliant four-terminal,
RJ45 Ethernet port
Event registration
Choice from word bank or free keyboard input
Timer accuracy
1ppm(at normal temperatures)
Scale of image
enlargement/reduction
【zoom in】 2、4、8、16、32 times or more
【zoom out】1/2、1/4、1/8、1/16、1/32 times or less
*arbitrarily-setting is available.
Monitor
LCD
Monitor size
15 inches or more
Power supply
AC100V~240V ±10% 50/60Hz
Power consumption
【2200HD Pro.】200~400W
【5000HD Pro./10000HD Pro.】550W(max.)
Color printer
Printing system
MACH jet
Full resolution
2,880×1,440dpi or more
Paper size
A4(max.)
Power supply
AC100V~240V ±10% 50/60Hz
Power consumption
40W(max.)
System configuration
Camera
1unit
Lens
1unit
Pan head
1unit
Connector box
1unit
Grip switch for capturing
1unit
Network cable
3pieces
Camera control cable
1piece
AC cable for camera
1piece
Uniterrupted power supply(for capturing PC)
1unit
HUB
1unit
Option
Capturing PC
Judgment PC
Color printer
Indoor camera stand
Outdoor camera stand(including pole)
Rain hood for camera
Data printer
Intercom
Carrying case(for camara and cables)
VDSL converter(for inside camera)
