Shooting Timer
Shooting Time
- KT-401
Shooting Timer for Basketball
High visibility LED digit at 25cm (9.84”)
■ In accordance with International Basketball(FIBA) regulations
■ Includes two display units, controller box, two connection cables and power cable
■ Features two instantly resettable preset times
■ Can be set from 1-99 seconds and resolution is in full seconds
■ Buzzer when countdown reaches zero

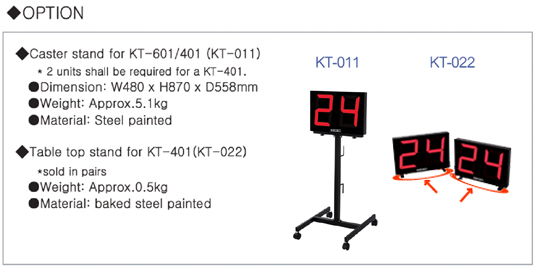

* Stands for KT-401 are sold separately.
* 2 units of table top stand (KT-011; option) shall be required for a KT-401.
* Shooting Timer KT-401 is designed for indoor use only.
Dimensions
Display board : Approx. W500 x H338 x D55 mm
Operation board : Approx. W186 x H73 x D182 mm
Character height
250 mm
Display
High-intensity red LED
Weight
Display board : Approx. 2.6 kg
Operation board : Approx. 1.1 kg
Adaptor with power cable : Approx. 0.7 kg
30 m cable : Approx. 1.4 kg
50 m cable : Approx. 2.1 kg
Power supply
AC 100V ~ 240V, 50/60Hz
Material
Display board : ABS resin
Operation board : Steel plate with baked finish
System Components
Display board
2 units
Display operation board
1 unit
Adaptor with power cable(5m)
1 piece
50 m signal cable
1 piece
30 m signal cable
1 piece
