Sports Counter

Sports Counter

  • KT-601

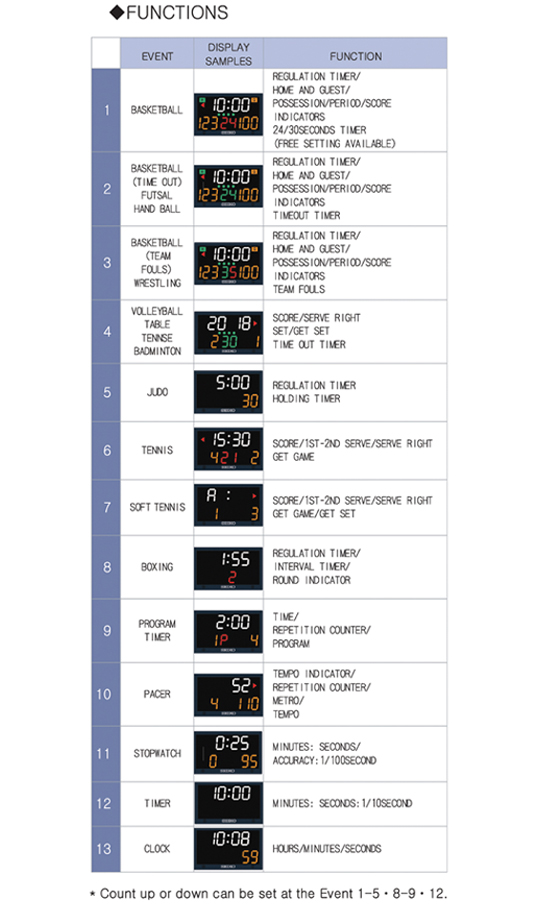

Scores multiple sports including basketball, volleyball, Table Tennis, Badminton, Boxing and Wrestling etc.
Also can be used as a pacer for training etc.


■ Can be used as a stopwatch, countdown timer or pacer

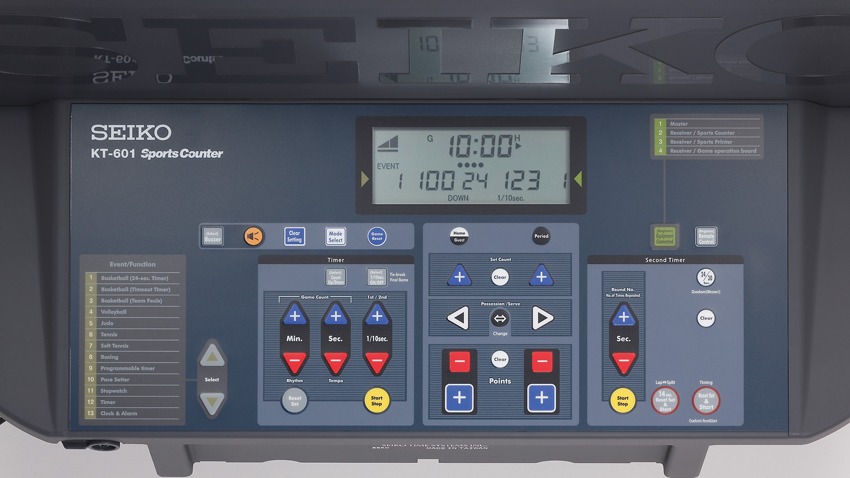

■ Can be operated from backside control panel or wireless remote
(KT-601RC; included)
■ Programmable game timer counts up or down from 99:59 with scores for two teams up to 199
■ Buzzer when timer reaches zero, or can be manually controlled

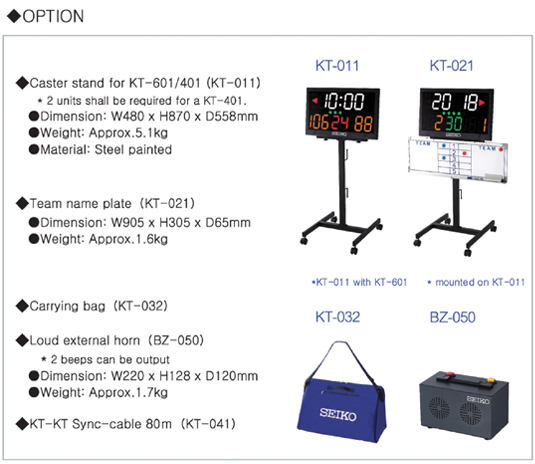

* By using sync-cable KT-041 (80 m; option), KT-601 can be interlocked with up to 4 other KT-601 units.
* Sports Counter KT-601 is designed for indoor use only.

System Components

Main unit

1 unit

Wireless remote

1 unit(with holder)

Adaptor with power cable(5m)

1 piece


Main unit : Approx. W650 x H400 x D220 mm
Wireless remote : Approx. W44 x H115 x D20 mm

Character height

Timer 130 mm, Point 120 mm, Second timer 110 mm


High-intensity LED


Main unit : Approx. 4.3 kg
Adaptor with power cable : 0.7 kg

Power supply

AC 100V ~ 240V, 50/60Hz
(maximum power consumption: 30 W)

Case Material

ABS resin
