Water Polo System
Water polo system
The display board indicates game time inclusive of the 35-sec. rule.
It also displays penalty time, scores, number of fouls, etc.
System Components
Mobile water polo display board
2units
battery box
2piece
Game time operation board
1unit
Score operation board
1unit
Penalty operation board
1unit
Foul operation board
1unit
Team name input device
1unit
30-sec. rule Display board
4unit
Battery for 30-sec. rule Display board
1unit
30-sec. rule operation board
1unit
Power supply box
1piece

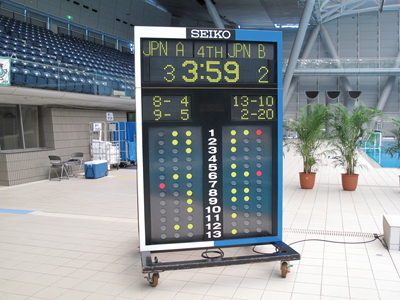

The Mobile Water Polo Display Board indicates the Game-time, Score,Penalty, Foul and Team name.
Equipped with a built in horn．
It can be indicated a shot clock in water polo game.
Equipped with a built in horn．
Mobile Water Polo Display Board
Size
W1,500×H2,490×D1,500mm
Power supply
DC24V, rechargeable battery
Weight
Approx. 300kg

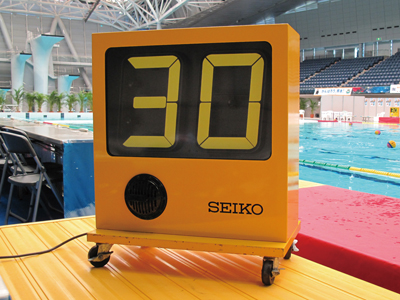

30-sec. rule Display board
Size
W670×H793×D370mm
Character height
305mm
Display element Electromagnetic type
7-segment
Power Supply
DC12V (internal Battery)
Weight
Approx. 35kg
Time out Display Board
Size
W670 ×H793×D370mm
Character height
200mm
Display element Electromagnetic type
7-segment
Power supply
DC12V (internal Battery)
Weight
Approx. 35kg
