Swimming Timing System
printing timer
- PT-8000X
Multi-Functional and User-Friendly
【In accordance with FINA Rules】
1. Automatic operation backup function to offset mistakes in operation.
2. All the functions required for a swimming timing system is integrated into one unit to offer constant, stable performance.
3. Specially designed for timing of swimming races - no need of all-purpose PCs or software.

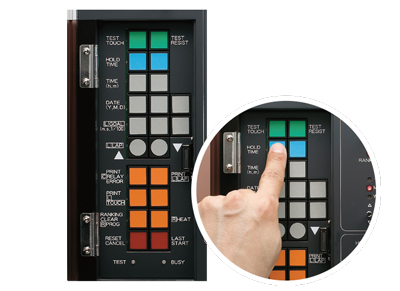

4. Dedicated keys for inputting event names and other data, and LED display for confirming the settings have further enhanced the operationability of the system.
5. Memorizes data of up to 400 races.

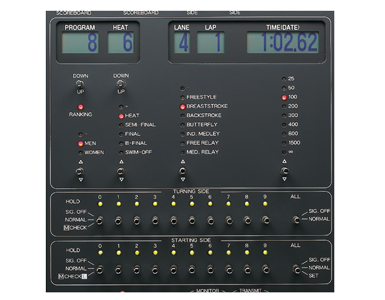

6. Easy-to-read display panel of intensified LCD.
7. High-speed built-in printer to print out large volume of data.
Function
Data printout
Data stored in memory can be printed out as many times as necessary.
Ranking table compilation
Ranking table for a heat or an entire event can be compiled as required.
Touch pad signal checking
Swimmerfs touches on the touch pads on both the starting and turning sides can be checked on the operation panel.
Relay take-off judgement
Early relay take-off is indicated by the LED as it is detected, and the relay lap time can be checked on the liquid crystal monitor.
Simultaneous arrival judgement
The same place will be assigned to the swimmers who have finished the race exactly at the same time.
Start signal memory
Even if the timer has not been reset and a new race is started, PT-8000X automatically stores the latest start signal in memory,and can return to the normal timekeeping with a push of a button.
Reset cancellation
Even if the timer is reset by mistake during a race, the resetting operation can be cancelled by pushing a button, and the normal measurement can be resumed.
Distance setting correction
Event data such as distance can be corrected at any time after the race has been started.
Hold time setting
Hold time, the duration during which the touch pad sensor is disabled, can be adjusted in the range from 5 to 90 seconds.
Lap No. correction
If PT-8000X receives incorrect lap signals, lap No. can be increased or decreased as required during the race by using the keys.
Various forms of printout
Entire lap data, entire touch data, data on early relay take-off, etc. can be printed out in various forms as required.
Time accuracy
Crystal oscillator type, less than 1 ppm at normal temperatures
Measurement unit and
place judgment
1/100 sec., same place assigned to same finish time
Maximum time measured
59 minutes 59 seconds 99
Maximum number of lanes
for measurement
10 lanes
Selection of distance
25, 50, 100, 200, 300, 400, 800, 1,500 m and (not specified)
Memory capacity
Up to 400 races
Selection of pool length
25/50 m
Power supply
DC 12 V battery with recharger for exclusive use with PT-8000X (built-in NiCd battery)
Operational temperature
and humidity ranges
0℃～＋40℃℃, 30～80 %
External view
Attache case type with control panel on the top
Overall dimensions
W474xH136xD328mm (excluding protruded portion)
Weight
Approx. 8.0 kg (including the case)
